Tungsten carbide Venturi bore Nozzles



Bore type: Venturi bore
Material: Tungsten carbide
Jacket type: Aluminum or plastic
Threads style: 11/4"-11 1/2 NPSM., 2"- 4 1/2 UNC.

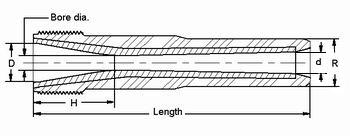

Order No. Length Bore dia. D H d R
TV60-2 60

4.8

 16 30 8 19
TV60-3 60 6.4 16 30 10 19
TV60-4 60 8 16 30 11 19
TV080-3 82 7 26 41 11 34
TV080-4 82 8 26 39 11 34
TV080-5 82 9 26 38 14.4 34
TV100-4 102 7.5 28 41.2 15.8 35
TV100-5 102 9 28 41.2 16.8 35
TV106-2 106 4.8 25.8 59.8 9.9 32
TV106-2E 106 4.8 28.3 52 8.1 36
TV135-3 135 6.4 25.8 55 11.3 32
TV135-3E 135 6.4 28.3 48 11.3 36
TV150-4 150 7.9 25.8 56 12.7 32
TV150-4E 150 7.9 33 53 12.7 40
TV175-5 175 9.5 25.8 58 14.3 32
TV175-5E 175 9.5 33 52 14.6 40
TV175-6 175 12 33 45 16.2 40
TV175-7 175 11 25.8 60 15.4 32
TV175-7E 175 11 33 45 15.7 40
TV175-8 175 13 25.8 53.4 17 32
TV175-8E 175 13 33 45 16.2 40
TV205-7 205 11 25.8 60 16.1 32
TV205-7E 205 11 33 45 16.1 40
TV220-6 220 12 25.8 56.4 18.5 32
TV220-6E 220 12 33 45 18.8 40
TV230-8 230 13 25.8 53.4 18.8 32
TV230-8E 230 13 33 45 18.8 40
Remark: Any other specification may available upon requirement.
